Unable to Withdraw the Optishape™ Stylet During Endotracheal Intubation: An Unusual Cause

Lakesh Kumar Anand, MD, FCCP, FIMSA; Sunita, MD; Dheeraj Kapoor, MD, FCCP; Rashi Sarna, MD

To the Editor:

The Truview EVO™ laryngoscope (Truphatek International Ltd. Netanya, Israel) is introduced with integrated optical lens that provides a 42° anterior reflected magnified laryngeal view.1 It facilitates visualization of the glottis without the alignment of oral, pharyngeal, and tracheal axes.It has a dedicated preformed stylet (Optishape™ stylet) that helps in better control during intubation. We report a case, where we encountered difficulty in withdrawing the stylet during endotracheal tube intubation using Truview® laryngoscope.

A 30-year-old female patient with a history of cervical spine trauma causing fracture and dislocation of cervical spine (C4-5) was scheduled for surgical fixation and stabilization via anterior approach. In the operating room (OR) routine monitors were attached to the patient, and after induction of general anesthesia laryngoscopy was performed in neutral position with Truview® laryngoscope to access the glottic aperture. We planned for intubating the trachea with 7.5 mm internal diameter cuffed endotracheal tube (ETT).The ETT was premounted on the dedicated stylet (Optishape™) available with Truview® for the ease of insertion. The stylet was introduced inside the ETT and secured to the tube by a screw present on the proximal end. After positioning the distal tip of the ETT in front of the glottic aperture we intended to withdraw the stylet but were unsuccessful. There was resistance during withdrawal and on further attempts; both ETT and stylet were coming together as a single unit. We immediately removed the ETT along with the stylet and planned for intubating the trachea with another ETT of same size. The ETT was premounted on reusable malleable stylet (PORTEX®) with shape exactly like the Optishape™ stylet. Laryngoscopy with Truview® laryngoscope was repeated and patient trachea was intubated without any difficulty.

Figure 1. A) Optishape™ stylet tip entangled with ETT distal end. B) Normal position of stylet.

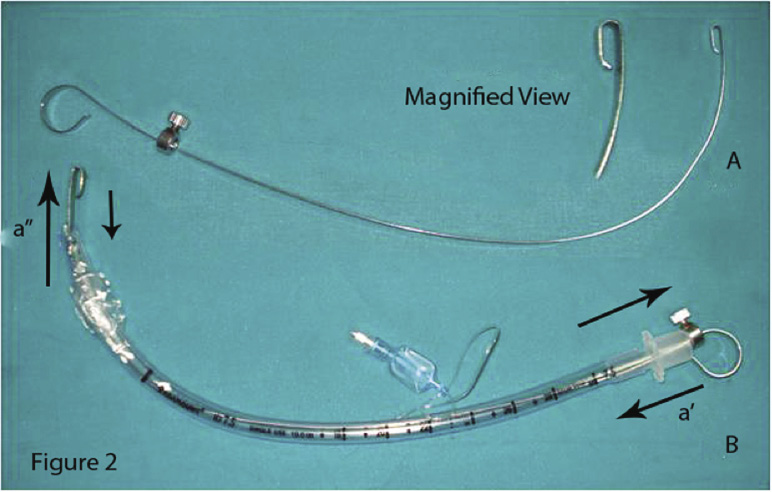

Figure 2. A) Optishape™ stylet and magnified view of tip with gap. B) Tip of stylet projected beyond the ETT tip, while withdrawing the stylet, ETT tip got entangled in the gap as shown by arrows.

On inspection of the Optishape™ stylet, it was found that the distal tip of the stylet was entangled with a distal end of the ETT, causing problems while withdrawing the stylet (Figure 1A). The manufacturers made the distal end of the Optishape™ stylet blunt by folding of the stylet tip, creating the possibility of a potential gap (Figure 2A). There can be a possibility of entanglement only if the tip of the stylet is projected beyond the ETT.

We realized that in our case the same situation might have occurred arising from dislodgement of the stylet due to accidental loosening of the screw (Figure 2 B). We infer that the Optishape™ stylet provided with Truview® needs certain modifications to avert this complication. We suggest that the distal end should not be folded to avoid the creation of a potential gap which can possibly get entangled with the ETT.

Dr. Lakesh Kumar Anand, MD,FCCP, FIMSA

Dr. Sunita, MD

Dr Dheeraj Kapoor, MD,FCCP Dr. Rashi Sarna, MD Chandigarh, India


Reference

  1. Li JB, Xiong YC, Wang XL, Fan XH, Li Y, Xu H, et al. An evaluation of the Truview EVO2 laryngoscope. Anaesthesia 2007; 62:940-3.
